How it Works

FTF Laser

The FTF system is a revolutionary way of fighting wildfires quickly and safely. The FTF system is easy to setup and use, making it an ideal choice for fire suppression in various locations and conditions.

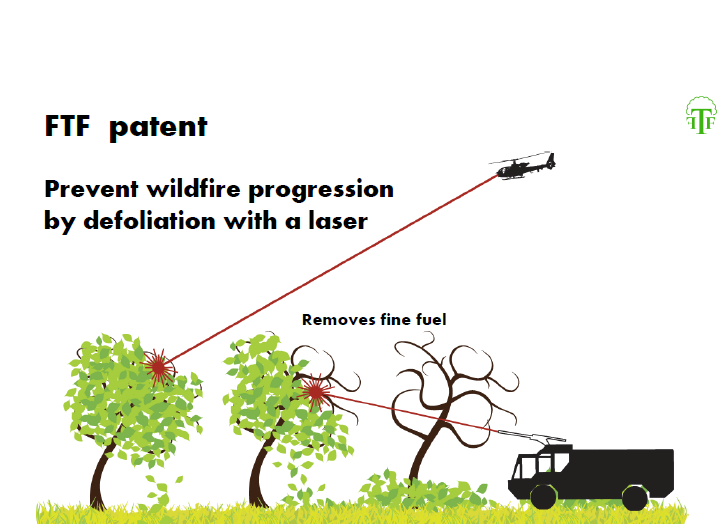

The FTF system is an effective and environmentally friendly method of wildfire fighting. It uses a laser beam from a distance to cut leaves off the trees and create a fire control line, stopping the fire from spreading, and allowing for the safe and easy suppression of the fire. It does not require any material to be loaded, making it a more efficient and less wasteful method.


Cutting the leaves off the trees stops the fire front, removing the fuel, one of the three elements in the fire triangle.

The fire triangle models the necessary elements for combustion and self-sustained fire: Heat, Oxygen and Fuel.


Water Suppression

Screen Shot 2022-12-03 at 1.17.08 PM.png
Screen Shot 2022-12-03 at 1.17.38 PM.png

Using water to suppress fire is one of the best approaches. The water both deprives fire its fuel and reduces the heat. But when there is a strong wind, dropping water onto the fire can prove to be tricky up to impossible. The wind just blows the water into unexpected directions, and the water does not arrive at its target. Another issue arises when dealing with extremely big fires. In some cases the temperature is so high that water dropped into the fire area decomposes and instead of acting as a battling force for fuel or heat, it acts as a new oxidizing agent, as the oxygen is released from the water. In other words the water dropped into the fire just makes it stronger.


The FTF system uses laser to cut down the leaves, which bypasses the problem of strong wind. Cutting the leaves off the trees then tackles both the fuel element and the oxygen one in the fire triangle:


First, it eliminates the fine fuels that normally advance the fire-front at the treetop level. This is mostly the fire-front that spreads the wildfire rapidly and unpredictably.

Then, packed on the ground, the green leaves make it harder for the fire-front to advance on the ground level as well.


By cutting the leaves off the trees, the FTF system will reduce the Canopy Bulk Density (CBD), which was pointed as a significant factor controlling the sustainability of treetop fire.


The Van-Whagner Threshold is a CBD limit under which the fire can't sustain itself. So by reducing the trees' CBD to below this threshold will stop the propagation of treetop fire, and will force the firefront to the ground.


This is essentially removing the fuel part in the fire triangle from the treetop area.


Fires usually start and spread in dry fine fuels which ignite increasingly larger size classes of fuels. If fine fuels are reduced or missing, a fire may not ignite or spread.


Fine fuels presence in the flaming fire front in a forest stand determines the fire spreading rate (fine fuel of width smaller than 1/4 inch in diameter).

Screen Shot 2022-12-03 at 1.21.21 PM.png
Screen Shot 2022-12-03 at 1.21.34 PM.png
Screen Shot 2022-12-03 at 1.24.09 PM.png
Screen Shot 2022-12-03 at 1.24.43 PM.png


Additionally, the green leaves that will have been cut off the trees will stack on the ground, the place to where the fire will be confined. Both the water percentage contained in these leaves and the way fact that they will stack on will help suppressing the fire on the ground level.


Stacking the green leaves on top of the dry leaves that cover the ground makes for a much harder fuel for the fire to ignite.


The stacking itself reduces the oxygen supply significantly, reducing and slowing down the fire-front.


So having removed the fuel for the treetop fire, and reducing the oxygen for the ground fire, the FTF system will allow for an easy suppression of the remaining fire using traditional suppression techniques such as dropping water or chemicals on the fire directly.

Use this QR code to download our poster used for the CRC Bush Fire conference
